Product specification
| Chipset | RTL8156B |
| Port number | 1* RJ45 |
| Standard | IEEE 802.3,IEEE 802.3u,IEEE 802.3az, IEEE 802.3ab, IEEE 802.3bz |
| Network media | 10Base-T,cat3 orabove UTP,1000Base-Tx,cat5 UTP |
| Data rate | 10/100M/1000M/2.5Gbps |
| Interface | USB3.0 |
| Color | Silver Gary and Black |
| LED Indicator | 10M/100M/1GLink/act,2.5GLink/act, Power |
| Dimension | 72*27*16.5mm,USB cable:73mm |
| Support OS | Windows 11, 10 ,8.1, 8, 32-bit&64-bitWindows 7,Vista ,XP |
| Environment | Operating Temperature: 0 ℃-55 ℃ |
| Relative Humidity: 10%-90%(non-condensing) | |
| Storage Temperature: -20℃-80℃ | |
| Relative Humidity: 5%-90%(non-condensing) | |
| Other features | plug and playWake-On-LAN |

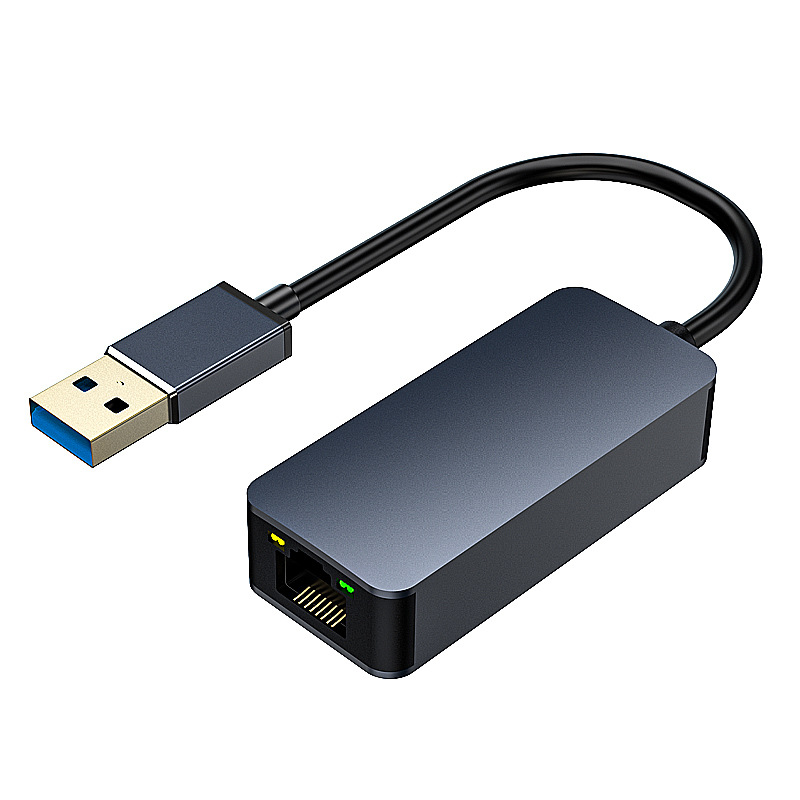

The USB 3.0 to Ethernet adapter is a high performance and highly integrated USB 3.0 bus Ethernet controller . The adapter supports 10 M/100 M/1G/2.5Gbps Ethernet function based on IEEE802.3bz LAN standard.
- Support Plug-n-Play specification.
- Support Wake on LAN
- Compliant with USB 2.0 and USB 1.0/1.1 specifications.
- Compliant with IEEE 802.3,IEEE 802.3u,IEEE 802.3ab
- Auto-Negotiation with Extended Next Page capability
- Supports IEEE 802.1P Layer 2 Priority Encoding
- Supports IEEE 802.1Q VLAN tagging
- Supports IEEE802.3az(Energy Efficient Ethernet)
- Supports IEEE802.3bz(2.5GBASE-T)
- Supports Full Duplex flow control(IEEE 802 .3x)
